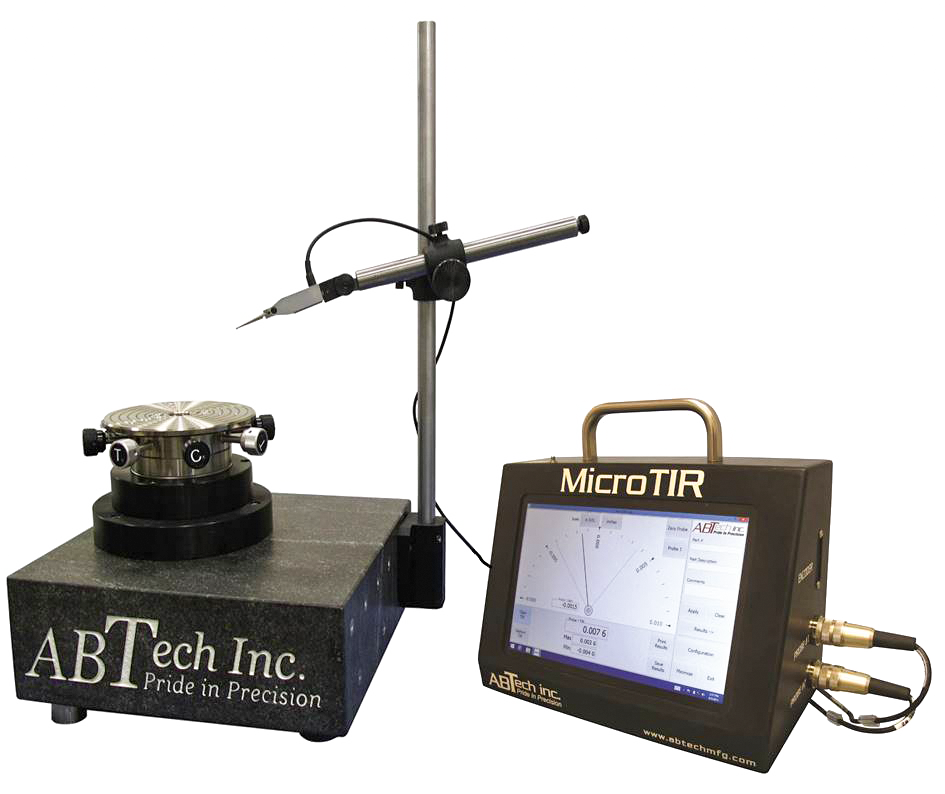

--- title: MicroTIR™ Gages - ABTech inc. description: MicroTIR™ Gages Accuracy is the most important measurement metric, but it isn’t the only one. Efficiency and usability are almost as critical. That means having a gage that is straightforward to use by operators of all skill levels. Our MicroTIR gages are quicker to set up, easier to use than a CMM, and offer higher --- ![MicroTIR Gage](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/MicroTIR-Gage-1.png) # MicroTIR™ Gages Accuracy is the most important measurement metric, but it isn’t the only one. Efficiency and usability are almost as critical. That means having a gage that is straightforward to use by operators of all skill levels. Our MicroTIR gages are quicker to set up, easier to use than a CMM, and offer higher accuracy with more reliable results. Designed specifically for checking total indicator readings (TIR) on OD, ID, and faces of cylindrical parts, the MicroTIR is focused on maximizing throughput. The friction-free ultra-precise air-bearing [rotary table](https://www.abtechmfg.com/precision-motion-components/rotary-tables/?hsLang=en) provides a stable, robust, and maintenance-free reference axis with certified system accuracy better than 10 millionths of an inch (10μ” or 0.25μm). The MicroTIR gage basic configuration includes a single, precision lever-type electronic indicator, probe fine adjust, gage stand, air-bearing rotary table with a tilt and center worktable mounted to an inspection grade granite surface plate, and MicroTIR touch screen display, all of which provide a turnkey system. The user interface displays the results in both a traditional analog-style needle and a digital format. The maximum and minimum readings and TIR are captured removing potential operator error and user subjectivity. You can input part numbers and descriptions and your results can be saved or printed for customer verification or as a traveler for the part. For a more in-depth explanation of the display please refer to our datasheet on “MicroTIR Display package”. This versatile system allows you to measure and verify TIR on a wide array of parts ranging from gears, pistons, and jet-engine components for in-house inspection or incoming part inspections for vendor compliance. ![MicroTIR Gage Screen Example](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/Screen_MTIR_1probe.jpg) ![MicroTIR Gage Screen Example](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/Screen_MTIR_1probe-300x200.jpg) ![MicroTIR Software -TIR Meter Setup Screen Example](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/Screen_TIR-dual-probe.jpg) ![MicroTIR Software -TIR Meter Setup Screen Example](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/Screen_TIR-dual-probe-300x200.jpg) ![MicroTIR Page Results](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/MTIR-Results-page.jpg) ![MicroTIR Page Results](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/MTIR-Results-page-300x201.jpg) ![MicroTIR Shown with Single Probe Adaptor](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/TIR-w-Screen-1.jpg) ![MicroTIR Shown with Single Probe Adaptor](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/TIR-w-Screen-1-300x231.jpg) ## Features & Benefits ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) Air bearing rotary table providing ultra-smooth, repeatable and maintenance-free operation ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) Gage stands designed for precise, stable movement while optimizing ease of use ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) Standard tilt & center worktable to center and level parts to the bearing’s axis of rotation, reducing eccentricity ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) Easily readable 10” wide format color touch screen with user friendly software ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) Network capabilities for enterprise connectivity ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) “Stackable” TIR results feature that can be combined into a single exportable report (PDF, CSV, Excel) ### Options & Accessories • Second probe and gage stand for individual or sum/differential probe display • Rotary encoder interface to synchronize the probe readings to the rotational position of your part • Precision centering fixtures, scroll chucks, custom collets and part mounting fixtures • Certified 2µ” master test ball and cover for system accuracy verification ### MicroTIR Specifications |   | MTIR150 | MTIR200 | MTIR300 | MTIR400 | | --- | --- | --- | --- | --- | | Bearing Accuracy | | | | | | Radial & Axial | <5.0 µ” (0.125 µm) | | | | | Tilt | <0.206 arc sec or 1.0µ”/in (0.025 µm/25mm) | | | | | Working Envelope | | | | | | Maximum Part Diameter (swing) | 12” 305 mm | 16” 406 mm | 24” 610 mm | 32” 813 mm | | Maximum Part Height (OD probe acecss) | 16” 406 mm | 18” 457 mm | 24” 610 mm | 36” 1,220 mm | | Height to Worktable | 10" 254 mm | 32" 813mm | | | | Axial Load Capacity | *60 lbs *27 Kg | 500 lbs 226 Kg | 1,200 lbs 544 Kg | 2,000 lbs 998 Kg | | Air Bearing Diameter | 6” 152 mm | 8” 203 mm | 12” 305 mm | 16” 406 mm | | Tilt & Center Worktable Configuration | | | | | | Thru-hole (with removable plug) | 1.25” 31.75 mm | 1.51” 38.35 mm | 1.75” 44.45 mm | 2.00” 50.80 mm | | Tapped holes | 1/4 -28 UNF | | | | | Knob Adjustment Configuration | 2 centering, 2 leveling at 90° | 4 centering, 4 leveling at 90° | | | | Gage Stand Configuration | | | | | | Style | Toolroom style (GST) stand | Inspection style (GSI) stand | | | | Quantity | Single (standard) & Dual (optional) | | | | | Display Package | | | | | | Software | ABTech MicroTIR Software | | | | | PC | Windows OS Industrial PC with 10” touchscreen | | | | | Misc. Package | | | | | | Product Dimension | 18” W x 12” D x 36” T 457 x 305 x 914 mm | 24” W x 18” D x 58” T 610 x 457 x 1473 mm | 36” W x 24” D x 70” T 914 x 610 x 1778 mm | 54” W x 36” D x 82” T 1372 x 914 x 2083 mm | | Product Weight | 150 lbs 68 Kg | 900 lbs 408 Kg | 1000 lbs 454 Kg | 1200 lbs 544 Kg | | Air Consumption | 2.0 cfm @ 60 psi, equipped with dual stage filter/regulator assembly | | | | *Limited by tilt and center worktable. Higher load capacities available upon request. #### Specialized Custom Solutions No matter how broad our standard product options may be, we realize that they can’t address every possible application. That’s what separates ABTech from most other Metrology suppliers. We won’t say 'sorry, best of luck.' Rather, we’ll connect you with one of our precision motion experts and work closely with you to configure a measurement solution that will meet your exact needs. This includes developing [custom solutions](https://www.abtechmfg.com/custom-solutions/?hsLang=en) for the most unique applications. ## GET A QUOTE TODAY Thank you for your interest in ABTech’s ultra-precision measurement tools and services. Please tell us a little about what you need to accomplish and we will be in touch to discuss any of the additional details that will help you choose your best option. [![GET A QUOTE »](https://no-cache.hubspot.com/cta/default/5052177/27576b60-b7fc-4839-b15d-0d822a7a2b6c.png)](https://cta-redirect.hubspot.com/cta/redirect/5052177/27576b60-b7fc-4839-b15d-0d822a7a2b6c) > We use 2 ABTech air-bearing spindles with tip/tilt and centering capability in our facility. These units are used for precision assembly and final metrology. We have never had an issue with either one, and the ABTech team is a great partner for us. We will be adding more systems as our young organization continues to grow. Jayson TiersonPresident > Vertex Optics **Made in the U.S.A** Every product we sell exemplifies our company-wide commitment to "Pride in Precision" craftsmanship. To that end, all of our products are designed, manufactured, and tested exclusively by ABTech at our New Hampshire facility. ## Solutions ![made in the USA](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/icon_made-in-usa.png) ## About ## Join our mailing list and never miss an update. ![](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/logo.png) 126 Route 12 North Fitzwilliam, New Hampshire 03447 (603) 585-7106 [**Contact Us**](https://info.abtechmfg.com/contact?hsLang=en) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_linkedin.png)](https://www.linkedin.com/company/abtech-inc-/) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_twitter.png)](https://twitter.com/ABTechInc) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_facebook.png)](https://www.facebook.com/ABTechMFG) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_instagram.png)](https://www.instagram.com/abtechmanufacturing/) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_youtube.png)](https://www.youtube.com/user/ABTechInc/videos?reload=9) Proud Members of: ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/aspe-logo.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/ntsl-international-logo.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/spie-logo.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/sba-logo-stacked.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/A3logo.png) © 2026 Copyright ABTech Inc. All rights reserved. [Privacy Policy](https://www.abtechmfg.com/privacy-policy?hsLang=en) [Terms & Conditions](https://www.abtechmfg.com/terms-conditions?hsLang=en)
