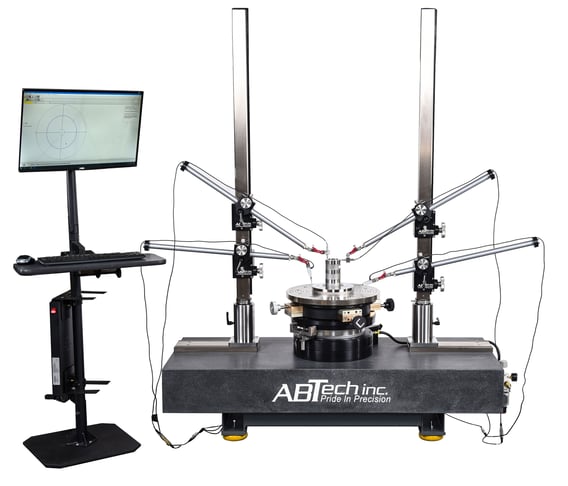

--- title: ABTech FormStack 1000 Engine Assembly System description: Looking for precise turbine engine assembly? This is the product you've been searching for. ---     ![FormStack-1000-System](https://www.abtechmfg.com/hs-fs/hubfs/FormStack-1000-System.jpg?width=568&height=486&name=FormStack-1000-System.jpg) # ** Model FormStack1000** ![Close Up View of Model EAS-P System](https://www.abtechmfg.com/hs-fs/hubfs/ABTech_August2023/Images/Model_EAS-P_2.png?width=202&height=97&name=Model_EAS-P_2.png) ![Close Up of Model EAS-Portable System](https://www.abtechmfg.com/hs-fs/hubfs/ABTech_August2023/Images/Model_EAS-P_3.png?width=202&height=158&name=Model_EAS-P_3.png) ## Specifications ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Model AT300/300-A5 12” (305 mm) diameter air bearing ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Encoder Products 1000 line count rotary encoder assembly ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Model HDTC4-300/449 tilt and center assembly with 17.625” (449 mm) worktable ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Rotary table anti-rotation kit ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Dual element air filter/regulator for air bearing supply ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Grade A black natural granite surface plate (24” x 60” x 8”) & welded steel base frame ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### 48” model GSI-48P/24A inspection style gage stands mounted to granite with dual arms ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### (2) lever-type & (2) plunger-type probes with extension cables & fine adjust mounts ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### USB controller box with (1) rotary encoder input and (8) USB probe inputs ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Windows PC preloaded with Genspect software ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### 27” color monitor, keyboard and mouse ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Mobile electronics cart ![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png) ### Certified gage blocks for gage head calibration ### Working Envelope - Max axial load (centered and balanced): 1,000 lbs (454 Kg) - Max part diameter (swing): 46” (117 cm) - Max part height (OD probe access): 46” (117 cm) #### Industries: * Aerospace * Aerospace * Automotive * Automotive * Aviation * Aviation * Bearings * Bearings * Energy * Energy * Land & Marine * Land & Marine * Optics * Optics * Semiconductor * Semiconductor [ Download Brochure ](https://www.abtechmfg.com/hubfs/ABTech_August2023/PDF/2021-EAS-brochure-1.pdf?hsLang=en) ## GET A QUOTE TODAY Thank you for your interest in ABTech’s ultra-precision measurement tools and services. Please tell us a little about what you need to accomplish and we will be in touch to discuss any of the additional details that will help you choose your best option. [![GET A QUOTE »](https://no-cache.hubspot.com/cta/default/5052177/27576b60-b7fc-4839-b15d-0d822a7a2b6c.png)](https://cta-redirect.hubspot.com/cta/redirect/5052177/27576b60-b7fc-4839-b15d-0d822a7a2b6c) > We use 2 ABTech air-bearing spindles with tip/tilt and centering capability in our facility. These units are used for precision assembly and final metrology. We have never had an issue with either one, and the ABTech team is a great partner for us. We will be adding more systems as our young organization continues to grow. Jayson TiersonPresident > Vertex Optics **Made in the U.S.A** Every product we sell exemplifies our company-wide commitment to "Pride in Precision" craftsmanship. To that end, all of our products are designed, manufactured, and tested exclusively by ABTech at our New Hampshire facility. ## Solutions ![made in the USA](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/icon_made-in-usa.png) ## About ## Join our mailing list and never miss an update. ![](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/logo.png) 126 Route 12 North Fitzwilliam, New Hampshire 03447 (603) 585-7106 [**Contact Us**](https://info.abtechmfg.com/contact?hsLang=en) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_linkedin.png)](https://www.linkedin.com/company/abtech-inc-/) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_twitter.png)](https://twitter.com/ABTechInc) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_facebook.png)](https://www.facebook.com/ABTechMFG) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_instagram.png)](https://www.instagram.com/abtechmanufacturing/) [![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Icons%20and%20Graphics/Social%20Icons/social-icon_youtube.png)](https://www.youtube.com/user/ABTechInc/videos?reload=9) Proud Members of: ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/aspe-logo.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/ntsl-international-logo.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/spie-logo.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/sba-logo-stacked.png) ![](https://www.abtechmfg.com/hubfs/Website%20Refresh_2024/Logos/A3logo.png) © 2026 Copyright ABTech Inc. All rights reserved. [Privacy Policy](https://www.abtechmfg.com/privacy-policy?hsLang=en) [Terms & Conditions](https://www.abtechmfg.com/terms-conditions?hsLang=en)
