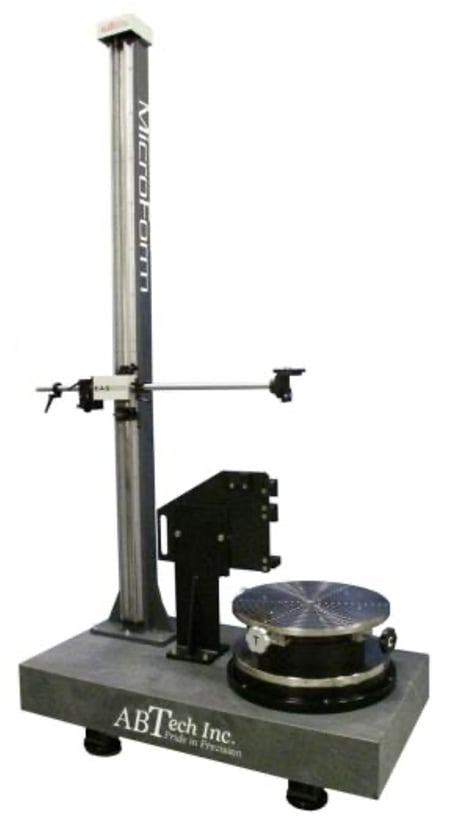

Model EAS3000
Genspect System
GE Tooling #9471M13P04
Specifications
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Model HDRT600 heavy duty 24” (610 mm) diameter air bearing
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
BEI 1000 line count rotary encoder assembly
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Model HDTC4-610 tilt and center assembly with 24” (610 mm) worktable
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Rotary table anti-rotation kit
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Dual element air filter/regulator for air bearing supply
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Grade A black natural granite surface plate (32” x 60” x 8”) & welded steel base frame
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
90” counterbalanced gage tower mounted to granite
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Fixed probe support stand and slide plate mounted to granite between tower and table (2)
- lever-type & (2) plunger-type probes with extension cables & fine adjust mounts
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
USB Genspect controller box with (1) rotary encoder input and (8) USB probe inputs
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Windows PC preloaded with Genspect software
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
27” color monitor, keyboard and mouse
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Mobile electronics cart
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Certified gage blocks for gage head calibration
Working Envelope
- Max axial load (centered and balanced): 3,000 lbs (1,361 Kg)
- Max part diameter (swing): 50” (127 cm)
- Max part height (OD probe access): 90” (229 cm)
