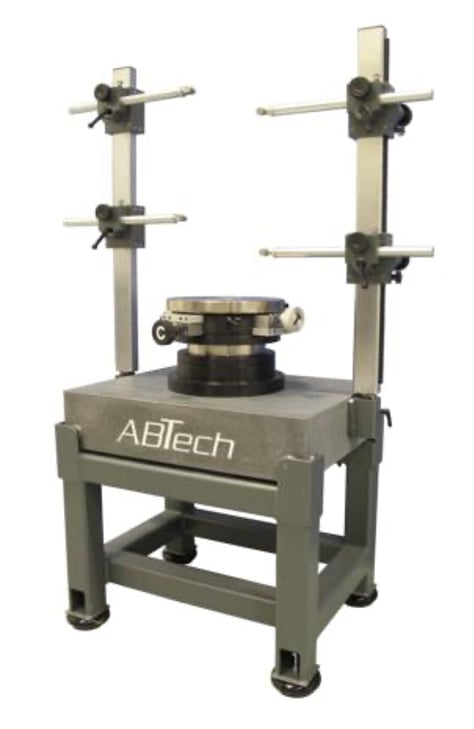

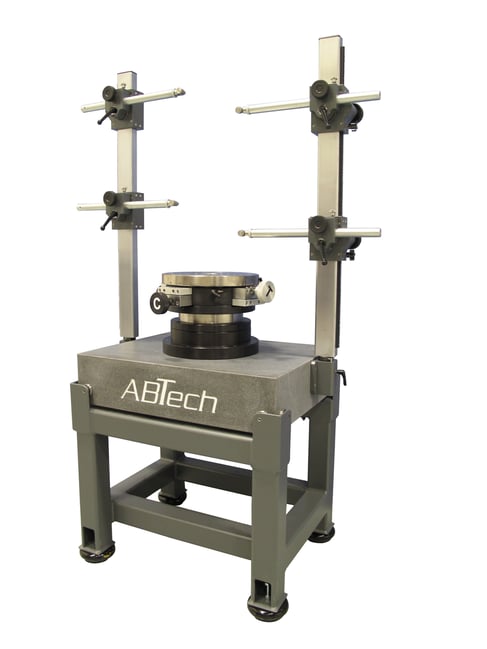

Model EAS500
Genspect System
GE Tooling #9471M13P02
Specifications
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Model AT200/200-A5 8” (203 mm) diameter air bearing
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
BEI 1000 line count rotary encoder assembly
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Model HDTC4-200/300 tilt and center assembly with 12” (304 mm) worktable
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Rotary table anti-rotation kit
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Dual element air filter / regulator for air bearing supply
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Grade A black natural granite surface plate (20” x 32” x 6”) & welded steel base frame
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
36” model GSI-36P/18A inspection style gage stands mounted to granite with dual arms
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
(2) lever-type & (2) plunger-type probes with extension cables & fine adjust mounts
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
USB Genspect controller box with (1) rotary encoder input and (8) USB probe inputs
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Windows PC preloaded with Genspect software
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
27” color monitor, keyboard and mouse
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Mobile computer cart
![check](https://www.abtechmfg.com/hubfs/ABTech_August2023/Images/check.png)
Certified gage blocks for gage head calibration
Working Envelope
- Max axial load (centered and balanced): ): 500 lbs (226 Kg)
- Max part diameter (swing): 24” (61 cm)
- Max part height (OD probe access): 30” (76 cm)
Engine Lines
Compressors (HPCR) and Turbines (HPTR):
- CT7-2
- CT7-5/-9
- CT7-6/-6A
- CT7-8
- HF120
- T700-401/401C
- T700-701C
- T700-701D
- T700-T6E1
- T700-T6A/T601
- YT706-700YT706-700R
