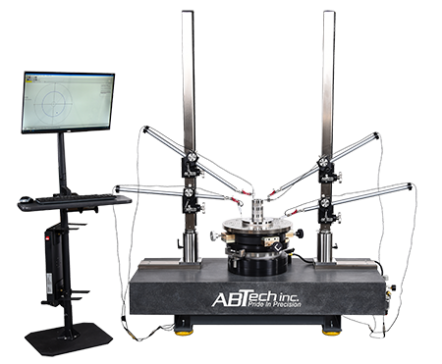

MicroForm Roundness Gage Our µFG150 model gage is engineered with proven air bearing technology, state-of-the-art electronics and intuitive software to deliver ultra-precision form measurement results, quickly and reliably.
Read the Full Story
Large Capacity MicroForm Gages Turn-key form measurement systems feature air bearing rotary tables with working load capacities up to 5,000 lbs, diameters up to 36” (even larger if necessary), and the sky is the limit (almost) for vertical height of the probe using our counterbalanced tower designs.
Read the Full Story
Has your gage kept up with the times? If it's from the 1900’s you’re suffering with slow speed, poor graphics, obsolete parts and lack of support. MicroForm™ functionality is now available as a retrofit “upgrade” to your air bearing roundness gage for a fraction of the cost of a new system.
Read the Full Story
RunOut Gage ABTech’s air bearing rotary tables provide an accurate and repeatable platform for tight geometric tolerance measurements. These RunOut gages are engineered to provide easy setup and reliable O.D., I.D. and vertical runout measurements for a large range of parts.
Read the Full Story
Setting Master Gage ABTech's SMG series gages feature linear air bearing travel lengths up to 150" (3810 mm) for repeatable and reliable accuracy. Setting Masters have precision vertical and horizontal adjustments and high resolution touch screen digital displays with preprogrammed ID and OD offsets.
Read the Full Story
Dual Plane Thickness Gage Using air-actuated force probes, this dimensional measurement gage measures thickness in two planes with ±20 micro-inch” (±0.5 micron) accuracy. It features a pneumatic control box and high resolution digital display for easy setup and one-touch measurements.
Read the Full Story
Optical Radius Gage For the most demanding optical radius inspections, this ORS gage features a 40” (1000mm) optical radius slide and high-resolution glass scale with 1 micron/meter accuracy. An ergonomic hand wheel lets you precisely adjust the gage’s carriage with the fine pitch manual drive.
Read the Full Story
Quality
  • Precision you can count on, in millionths of an inch.
  • Vibration-free maintenance-free motion—from prototype to production.
  • Give us your ideas. We’ll put them in motion.
  • Air Bearing Technology + Pride in Precision + American Made
  • Ultra-precision measurement, time and time again.

Pride in Precision

Your application requires the next level in precision.

ABTech has earned world-wide recognition for our expertise in air bearing technologies with micro-inch (submicron) accuracy. Our systems have measured the angles between molecules and created telescope optics for NASA.

Everyone at ABTech is committed to meeting and exceeding your requirements in our metrology gages, component air bearings and custom engineered motion systems.

We want to be your resource for accurate, repeatable and friction-free motion. Contact us for answers to your air bearing questions; to solve your measurement problems; or to turn a design on a napkin into a fully functional motion system.

Our “Pride in Precision” is your guarantee.

Rotary and Linear Motion

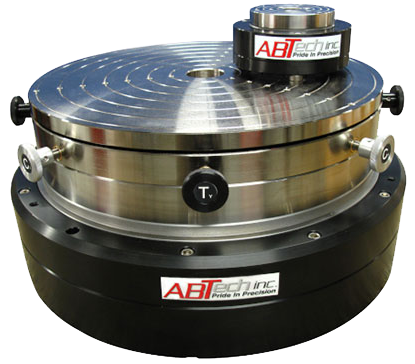

Air Bearing Rotary Tables

ABTech’s AT series manual spin and direct-drive air bearing rotary tables, with dual...
Full Story

LAB-R Rectangular Air Bearing Slides

ABTech designed these ultra-precision linear air bearing boxway slides with a fully preloaded...
Full Story

High-Speed Air Bearing Spindles

ABTech’s programmable, high-speed air bearing spindles provide reduced error motion......
Full Story

Multi-Axis Linear and Rotary Motion

Combine ultra-precision rotary motion with smooth and straight linear slides …
Full Story

Custom Solutions

ABTech understands ultra-precision - from design through manufacturing to certification - for turnkey single or multi-axis systems.

Don't see what you want? We work with industry, government and research leaders worldwide to solve challenging motion problems. We're ready to help you.
