Diameter Measurement Gage

On-Machine Accuracy and Repeatability

Do you need to check the size of your turned parts while still on the lathe, grinder, or another machine center? ABTech’s precision diameter measurement gages are designed for measuring large diameter parts with better than .001” system accuracy.

DMG360 gages include a precision ground hardened steel wheel that rides on an uninterrupted OD surface of your part. Adjusters built into the wheel body allow you to easily align the wheel to the part.

Using your machine center to rotate the part the gage calculates the diameter from an average of four full rotations. A proximity sensor and trigger are used to precisely count off each revolution.

With optional handheld IR thermal sensors, you can enter the part and room temperatures and use the systems compensation factor.

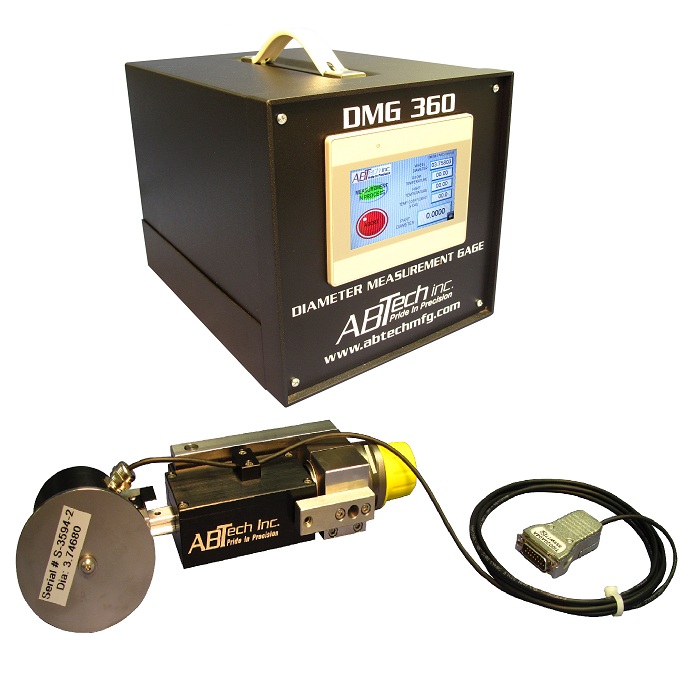

Model DMG360 Diameter Measurement Gage

DMG360 Touchscreen Interface

Accuracy: .001" (25.4 μm) • Repeatability: .0005 (12.7 μm)

Max machine speed (to maintain accuracy): 60 surface ft/min

3.750" precision ground hardened 440C stainless steel wheel

Visible reference guide for setting proper wheel pressure

Proximity sensor to trigger measurements

LED indicators in sensor to assist with trigger alignment

Compact digital display unit with handle for portability

Touch pad operator interface

Programmed with ABTech measurement software

Temperature input for compensation

Available in various receiver mount options with alignment adjusters

Fits Aloris, C5 Capto or other custom tool holders

Portable for use on multiple machines

Protective storage/carrying case with custom foam inserts

We use 2 ABTech air-bearing spindles with tip/tilt and centering capability in our facility. These units are used for precision assembly and final metrology. We have never had an issue with either one, and the ABTech team is a great partner for us. We will be adding more systems as our young organization continues to grow. Jayson TiersonPresident
Vertex Optics

Made in the U.S.A of U.S. and imported parts

Every product we sell exemplifies our company-wide commitment to "Pride in Precision" craftsmanship. To that end, all of our products are designed, manufactured, and tested exclusively by ABTech at our New Hampshire facility.
